Brand Name : Haizhili
Model Number : CBYD-3T
Certification : CE
Place of Origin : Hubei, China
MOQ : 1 SET
Price : Negotiable
Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 20000PCS/MONTH
Delivery Time : 7 working days
Packaging Details : 6 pcs to be packed in one iron pallet
Material : Bao-steel
Color : Yellow
Load capacity : 3000kg
Total Weight : 70-72kg
Max lifting height : 191mm
High/ Low fork height : 115 / 71mm
Overall width forks : 550/685mm
Bracket lnner width : 230/365mm
Bracket single fork size : 160*1150,160*1220mm
Front wheel diameter : 78*70mm
Rear wheel diameter : 180*50mm
Pump : D type hydraulic pump
Type : Low Profile Hand Pallet Truck
After-sales service provided : Video technical support
Lift drive / actuation : Hand,hydraulic pallet truck
Warranty : 12 Months
Handle : 3-position handle
China forklifts light duty manual pallet truck 3 ton low profile hand pallet truck
Specification of Low Profile Hand Pallet Truck:
Model | CBY-2T | CBY-2.5T | CBY-3T | CBY-5T |
Load capacity (T) | 2T | 2.5T | 3T | 5T |
Lift height (mm) | 191 | 191 | 191 | 191 |
Low fork height (mm) | 71 | |||
Fork outer width (mm) | 685/550 | |||
Fork length mm | 1220/1150 | |||
Pallet truck length (mm) | 1630/1560 | |||
Front wheel diameter mm | 78X70 | 78X70 | 78X70 | 80X70 |
Rear wheel diameter (mm) | 180X50 | |||
Total Weight (kg) | 70/66 | 72/68 | 74/70 | 119/112 |
Tips: We can customize the pallet jack's fork size and the load capacity for you. Please feel free to contact us for any question.
Feature of Low Profile Hand Pallet Truck:
1) Rubber coated handle comfortable even under extreme temperature conditions.
2) Fully sealed galvanized hydraulic unit housing.
3) Single valve cartridge for easy maintenance.
4) Powder coated chassis made of high grade steel.
5) Lead-in and lead-out rollers reduce damage to pallets.

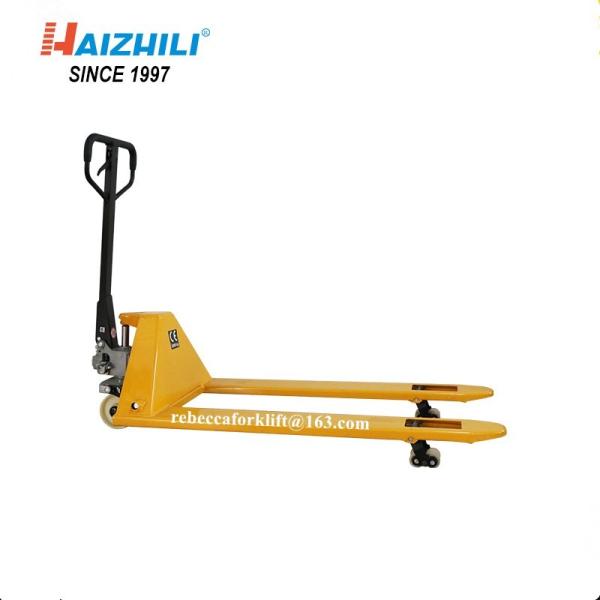

Picture of Low Profile Hand Pallet Truck:
About us:
Hai Lift Machinery Co., Ltd. was founded in 1997. Hai Lift is a high tech enterprise of research and
development, manufacture, sales and after-sales service of material handle equipments. With 2 production
bases, covers an area of 20000 square meters, Hai Lift has more than 500 experienced technicians. We can
provide our customers efficient, safe, comprehensive solution for aerial work, cargo lifting, warehousing
& logistics transportation.
Hai Lift has always followed a policy of "Quality first, Technology leading, Cooperation and Win-win ”.
Hai Lift has been developing itself by researching on new technology and new products, offering superior
products and service for customers. If you are looking for smooth business, profit and success, we are the
right supplier. With good quality and professional service, we have fully confidence that Hai Lift will be
your best partner. We sincerely hope to cooperate with you for win-win situation.
FAQ:
Q1: How long is the warranty time ?
A1: 2000 working hours or 12 month, whichever comes first.
Q2: How can I get the after-sales service?
A2: Contact with us if you have any question or need professional support. We will try to solve your
problem in 24 hours, and arrange the delivery of spare parts in 48 hours.
Q3: What about the delivery time ?
A3: The delivery time is about 10-15days after receipt of down payment.
Q4: How to pay for it ?
A4: Generally, we used T/T: 30% as deposit and the balance will be paid before shipment. L/C is
available according to actual conditions.
Q5: Can I mix order?
A5: Yes.
